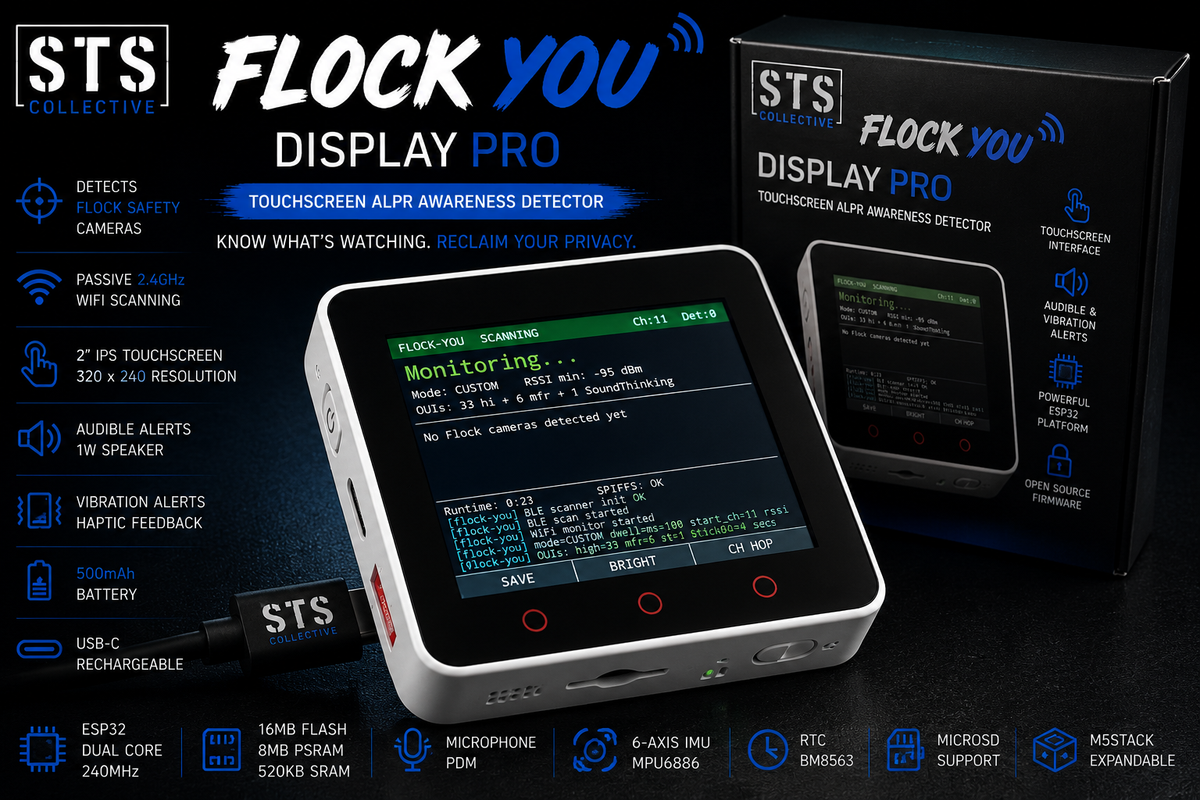

FlockYou Display Pro | Touchscreen ALPR Awareness Detector
Sale price
$119.99
Regular price
$149.99
Skip to product information
FlockYou Display Pro | Touchscreen ALPR Awareness Detector
Sale price
$119.99
Regular price
$149.99
Before You Order
- Device: M5Stack Core2 with a 2-inch touchscreen, speaker and vibration hardware.
- Power: Integrated 500mAh rechargeable battery and USB-C connection; charge before use.
- Detection: Supported 2.4 GHz Wi-Fi signatures associated with Flock/ALPR equipment. Alert behavior depends on installed firmware.
Shipping options and delivery estimates depend on your items and destination. Shipping information · Returns · Ask a question
Buying for a team?
Request a quote for multiple devices. Include your preferred model, quantity, delivery country/postal code and target date so we can confirm availability and shipping before you order. General response time: 24–48 hours.
Detection limits: Supported wireless signatures must be observable within range. A device can go undetected; no alert does not establish that an area is free of surveillance equipment.
Technical Specifications
Hardware Platform
Processor
ESP32-D0WDQ6-V3 dual-core 32-bit processor
Up to 240 MHz
Wireless
2.4 GHz Wi-Fi
Display
2-inch IPS color TFT LCD
320 × 240 resolution
Touch Interface
FT6336U capacitive touchscreen
Three programmable virtual button zones
Memory
16MB Flash
8MB PSRAM
520KB SRAM
Audio
Integrated speaker
NS4168 I2S amplifier
Haptic Feedback
Integrated vibration motor
Battery
500mAh rechargeable lithium battery
Power Management
AXP192 power management system
Connectivity
USB Type-C
Grove interface
M5-Bus expansion interface
Storage Expansion
microSD card slot
Sensors
6-axis MPU6886 IMU
Integrated SPM1423 microphone
RTC
BM8563 real-time clock
Dimensions
54 × 54 × 16.5 mm
Weight
Approximately 54.9g
Premium FlockYou Awareness Without a Subscription
FlockYou Display Pro combines passive ALPR awareness with a touchscreen, larger battery, speaker, vibration hardware, expandable storage, additional memory, and open-source firmware.
It provides a self-contained FlockYou experience for vehicle use, field research, privacy awareness, cybersecurity education, and wireless research.
For source code, documentation, firmware releases, and technical information, visit the official FlockYou ESP32 Project.
Setup guides and downloads
Download your free PDF guide for setup, power requirements, troubleshooting and documentation links. Save a copy for offline reference.
Project documentation
Use the instructions for your exact hardware and installed firmware version. Setup help: support@stscollective.com.
Original project, developer, and DIY resources
- Original project developer and source: Original FlockYou project by Colonel Panic
- Original documentation and DIY guide: FlockYou project guide
These links identify the upstream project, its documentation, and available self-installation or reprogramming information. STS Collective provides prepared hardware for customers who prefer not to assemble or flash a device themselves.
Hardware, firmware, compatibility, testing, and support
- Hardware: FlockYou Display Pro | Touchscreen ALPR Awareness Detector
- Firmware: FlockYou is the firmware or software path identified above. The listing states that the image is installed or preloaded.
- Compatibility: Review the hardware, power, operating system, software, accessory, and regional requirements stated above before ordering.
- Testing: This listing does not promise individual pre-shipment testing. Contact support before ordering if you need a specific verification.
- Setup and DIY: Use the project, setup, and DIY references already included in this description. Follow the guide for the exact hardware and firmware. Project or setup documentation 1 Project or setup documentation 2 Project or setup documentation 3
- Support: Contact support@stscollective.com for setup and product questions.
- Lawful use: Use only on hardware, networks, cards, radio bands, and systems you own or have explicit permission to test. Follow applicable laws, platform rules, privacy rules, and radio regulations. Do not access, copy, interfere with, or disrupt other people's systems.
DIY flashing option
Flashing your own compatible device is usually manageable when you follow the project guide. STS Collective provides a ready-to-use flashed device for customers who prefer convenience. You do not need to buy a flashed unit to use the project.
Use the guide for your exact board and selected firmware:
- FlockYou project and flashing guide
- FlockYou project and flashing guide
- FlockYou project and flashing guide
Confirm the board revision, firmware target, power requirements, and current release before flashing. Reflashing replaces the installed firmware and may erase settings.
Hardware origin, packaging, and firmware
This listing uses standard off-the-shelf OEM hardware from the original hardware manufacturer. STS Collective is not the hardware manufacturer. The hardware supplied matches the hardware shown in this listing.
STS Collective develops and flashes STS firmware, or flashes firmware from the original developer identified below. Your order is packaged to represent the physical hardware, not the firmware. When original packaging is supplied, it is OEM packaging for the hardware model. Fulfillment handling sometimes removes original packaging or uses other shipping packaging. Packaging does not identify the firmware developer.
Firmware developer
- FlockYou: SimeonOnSecurity developed the installed firmware with sponsorship from STS Collective. The upstream Flock-You project was created by Colonel Panic.
STS Collective flashes the identified firmware before shipment. The installed firmware does not change the source or manufacturer of the physical hardware.
