FlockYou Display Pro | Touchscreen ALPR Awareness Detector

Premium FlockYou Detection with Touchscreen Control

FlockYou Display Pro brings the FlockYou ALPR awareness platform to a feature-rich, self-contained touchscreen device.

Built by STS Collective on the M5Stack Core2 platform and shipped with FlockYou firmware preinstalled, Display Pro passively monitors nearby 2.4 GHz Wi-Fi activity for characteristics associated with supported automated license plate reader systems.

The 2-inch 320 × 240 IPS touchscreen provides a full local interface for monitoring, detections, status information, and device controls.

Display Pro also adds a larger 500mAh rechargeable battery, vibration motor, integrated speaker, 8MB PSRAM, microphone, RTC, and expandable M5Stack hardware.

No cloud account. No subscription. No required phone.

What’s Included

• 1 × FlockYou Display Pro
• FlockYou ESP32 firmware preinstalled
• 2-inch 320 × 240 IPS capacitive touchscreen
• Visual detection information
• Audible alerts through the integrated speaker
• Vibration and haptic alert hardware
• Passive 2.4 GHz Wi-Fi monitoring
• 500mAh rechargeable battery
• USB Type-C cable
• Expandable M5Stack hardware platform
• No cloud account required
• No subscription required
• Ready to use out of the box

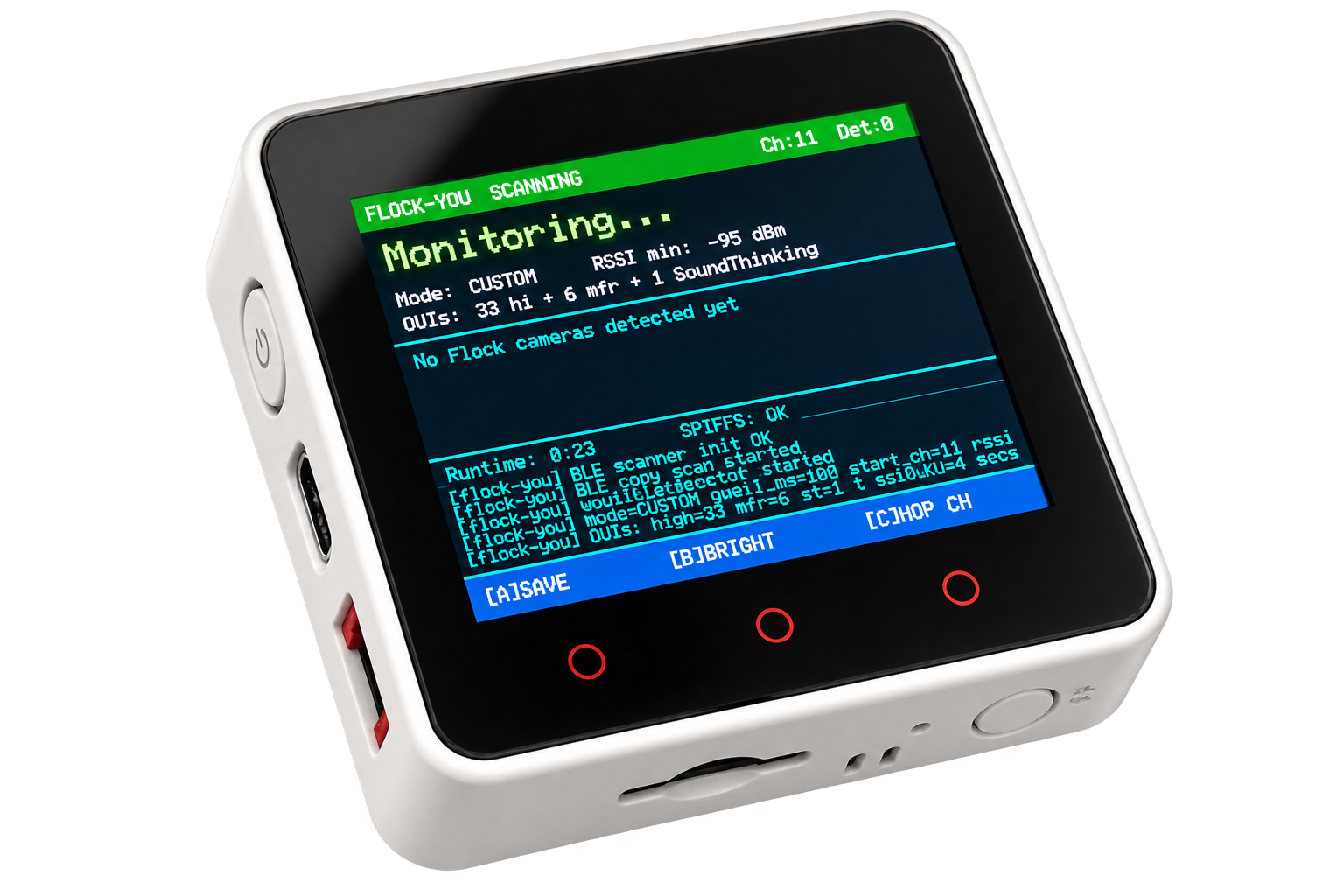

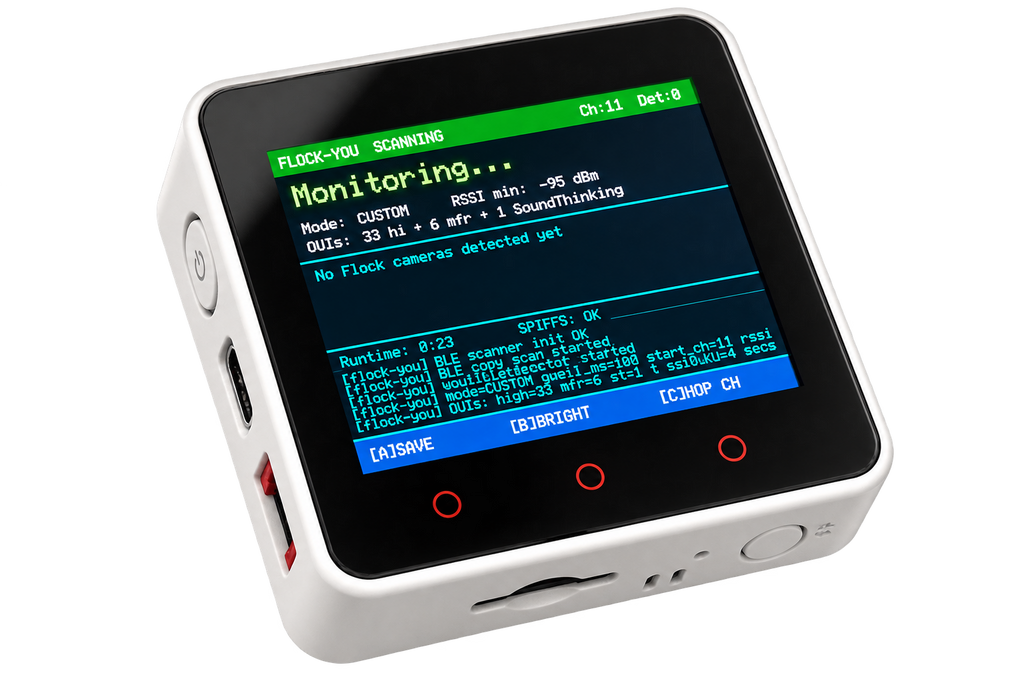

2-Inch Capacitive Touchscreen

Display Pro replaces traditional button-focused interaction with a 2-inch capacitive touchscreen.

The 320 × 240 IPS display provides room for FlockYou monitoring information, detections, wireless identifiers, confidence information, runtime data, and device status.

Touch input also provides a foundation for a richer FlockYou interface without requiring a separate phone or computer.

Open-Source FlockYou Firmware

FlockYou Display Pro ships with the STS Collective FlockYou ESP32 firmware installed and configured.

The firmware monitors wireless activity and evaluates multiple indicators associated with supported ALPR infrastructure.

Review the source code, documentation, detection methodology, development history, and releases through the official repository:

⁠FlockYou ESP32 Firmware on GitHub

The open-source design gives researchers and users access to the software and detection logic running on their device.

How FlockYou Works

FlockYou passively monitors publicly observable 2.4 GHz Wi-Fi activity and evaluates indicators associated with supported ALPR systems.

Detection methods supported by the FlockYou platform include:

• Wi-Fi frame analysis
• Manufacturer OUI matching
• Associated SSID patterns
• Wireless signature matching
• Multi-address matching
• Confidence-based detection logic

Multiple indicators help FlockYou distinguish relevant activity from unrelated Wi-Fi devices operating nearby.

Visual, Audible, and Haptic Hardware

Display Pro provides hardware for three forms of local feedback.

The IPS display presents detailed visual information.

The integrated speaker provides audible alert capability.

An internal vibration motor provides hardware support for haptic feedback and vibration alerts.

This combination makes Display Pro well suited to vehicle, portable, and field use.

500mAh Rechargeable Battery

Display Pro carries a substantially larger internal battery than the other display-focused FlockYou models.

Its integrated 500mAh lithium battery provides greater portable power capacity while retaining USB Type-C charging.

Use Display Pro as a handheld device, place it in a vehicle, or connect USB power for extended stationary operation.

More Memory for FlockYou

The ESP32 platform includes:

• 16MB Flash
• 8MB PSRAM
• 520KB SRAM
• Dual-core processing up to 240 MHz

The additional PSRAM gives Display Pro considerably more working memory than the standard Display hardware platform and provides greater headroom for future FlockYou features.

Built for Vehicle and Field Use

At approximately 54 × 54 × 16.5 mm, Display Pro packs its screen, battery, speaker, vibration motor, microphone, sensors, and ESP32 hardware into a compact enclosure.

It works well for:

• Vehicle installations
• Dash-mounted awareness systems
• Everyday carry
• Field research
• Security demonstrations
• Privacy research
• Cybersecurity education
• Wireless experimentation
• Portable surveillance-awareness kits

Passive by Design

FlockYou focuses on passive monitoring and situational awareness.

The device listens for wireless activity present in the surrounding environment and processes detection information locally.

It does not require access to ALPR infrastructure, a Flock Safety account, or an STS Collective cloud service.

No Subscription Required

FlockYou Display Pro operates locally.

There is no required monthly service, cloud account, or recurring subscription.

Power it on and FlockYou begins monitoring supported wireless activity.

Expandable M5Stack Platform

Display Pro uses the M5Stack Core2 platform, providing extensive hardware expansion options for researchers and developers.

The system includes M5-Bus expansion, Grove connectivity, microSD support, an RTC, microphone, 6-axis IMU, speaker, vibration motor, and additional interfaces.

This makes Display Pro well suited to advanced experimentation and future FlockYou development.

Ideal For

• Privacy-conscious individuals
• Security professionals
• Penetration testers
• Journalists
• Digital rights advocates
• Wireless security researchers
• Cybersecurity students
• RF and wireless enthusiasts
• ALPR researchers
• Vehicle-based monitoring
• Security demonstrations and training
• FlockYou developers
• Users wanting the most feature-rich FlockYou display model

Technical Specifications

Hardware Platform

M5Stack Core2

Processor

ESP32-D0WDQ6-V3 dual-core 32-bit processor

Up to 240 MHz

Wireless

2.4 GHz Wi-Fi

Display

2-inch IPS color TFT LCD

320 × 240 resolution

Touch Interface

FT6336U capacitive touchscreen

Three programmable virtual button zones

Memory

16MB Flash

8MB PSRAM

520KB SRAM

Audio

Integrated speaker

NS4168 I2S amplifier

Haptic Feedback

Integrated vibration motor

Battery

500mAh rechargeable lithium battery

Power Management

AXP192 power management system

Connectivity

USB Type-C

Grove interface

M5-Bus expansion interface

Storage Expansion

microSD card slot

Sensors

6-axis MPU6886 IMU

Integrated SPM1423 microphone

RTC

BM8563 real-time clock

Dimensions

54 × 54 × 16.5 mm

Weight

Approximately 54.9g

FlockYou Display vs. Display Pro

Choose FlockYou Display if you want a larger FlockYou screen, physical controls, audible alerts, and a lower price.

Choose FlockYou Display Pro if you want touchscreen interaction, a 500mAh battery, vibration hardware, 8MB PSRAM, additional sensors, and the most capable display-focused FlockYou platform.

Display Pro serves as the premium option for users who want more hardware headroom and a richer local interface.

Premium FlockYou Awareness Without a Subscription

FlockYou Display Pro combines passive ALPR awareness with a touchscreen, larger battery, speaker, vibration hardware, expandable storage, additional memory, and open-source firmware.

It provides a self-contained FlockYou experience for vehicle use, field research, privacy awareness, cybersecurity education, and wireless research.

For source code, documentation, firmware releases, and technical information, visit the official  ⁠FlockYou ESP32 Project.
