FlockYou M5 Atom Lite Flock Camera Detector | WiFi ALPR Awareness Tool with Blue LED Alert

Detection limits: Alerts depend on supported wireless signatures, signal conditions and installed firmware. The device cannot detect every target; no alert does not prove that an area is free of surveillance or tracking equipment.

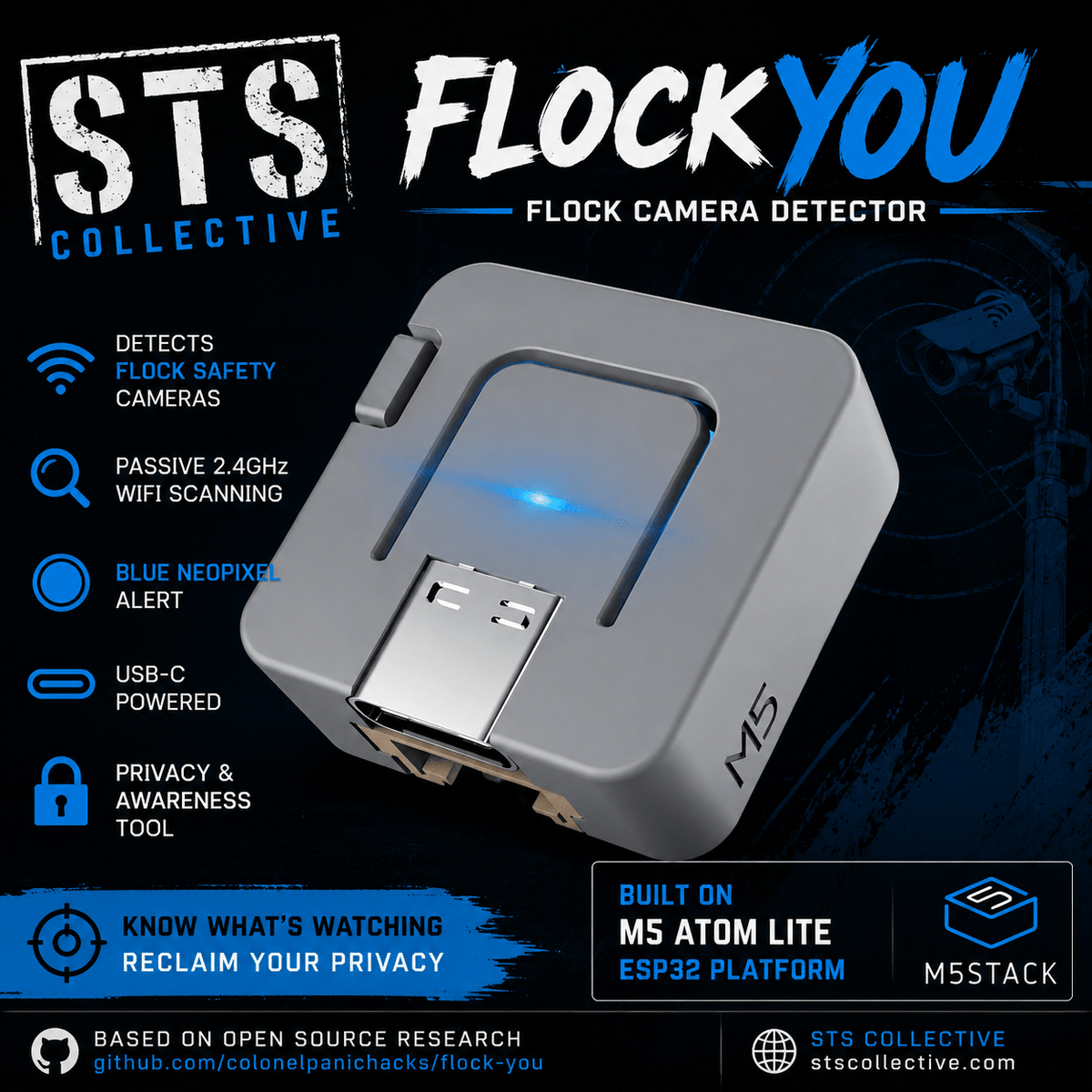

The FlockYou M5 Atom Lite Detector is a compact, privacy-focused wireless awareness tool built on the M5Stack Atom Lite ESP32 platform and preloaded with FlockYou-style WiFi detection firmware.

Designed for researchers, privacy advocates, and people who want better awareness of surveillance infrastructure in their area, this device passively monitors nearby 2.4 GHz WiFi activity for known Flock Safety camera signatures. The onboard RGB NeoPixel indicator gives you a clear visual status at a glance — no screen, phone app, or laptop required.

This is a lightweight, plug-and-go detector for passive awareness, not a jammer, bypass tool, or network intrusion device. It does not connect to protected networks, authenticate to any access point, interfere with cameras, or transmit disruptive traffic.

Flock is rapidly changing their firmware and hardware — this won't detect every Flock camera; our firmware updates regularly with new signatures.

The firmware is based on open-source FlockYou research and tooling from Colonel Panic and a fork of the public colonelpanichacks/flock-you GitHub project called flock-you-esp32 by SimeonOnSecurity.

Key Features

• Built on the compact M5Stack Atom Lite ESP32 development board
• Preloaded with FlockYou-inspired WiFi detection firmware
• Passively scans 2.4 GHz WiFi frames for known Flock Safety camera indicators
• Uses known Flock-related WiFi OUI signatures and wildcard probe behavior
• RGB NeoPixel LED provides real-time visual status: green while scanning, red flash on detection
• USB-C powered for simple use in a vehicle, bag, desktop, or mobile setup
• No cloud account, subscription, or internet connection required for standalone alerting
• Compact 24 mm x 24 mm form factor
• Educational and research-focused counter-surveillance awareness tool

LED Status Indicator

Hardware Details

This unit is based on the M5Stack Atom Lite ESP32 IoT Development Kit, featuring:

• ESP32-PICO-D4 dual-core processor
• 2.4 GHz WiFi support
• Built-in 3D antenna
• USB-C power and programming
• Integrated RGB NeoPixel LED indicator
• Compact plastic enclosure
• Programmable button
• 4 MB flash

How to Use

For basic standalone use, plug the device into a USB-C power source such as a wall adapter, power bank, laptop, or vehicle USB adapter. Once powered on, the LED will sweep through a rainbow color cycle to confirm startup, then settle to solid green indicating the device is actively scanning.

When a suspected Flock Safety camera signature is detected, the onboard RGB LED will flash red as a simple visual alert, then return to green.

For best results:

• Place the device where it has a clear view of nearby wireless signals
• Avoid burying it inside metal enclosures, glove boxes, or heavily shielded areas
• Use it while walking, driving, or surveying an area where ALPR or surveillance camera presence is being researched
• Treat detections as indicators, not absolute proof
• Confirm findings with additional research, public records, visual observation, or mapping tools where appropriate

Detection range and reliability can vary based on distance, antenna orientation, building materials, vehicle placement, local WiFi congestion, and how the nearby camera hardware is configured.

Using with the FlockYou Dashboard / App

The device can also be used with the FlockYou dashboard where supported by the installed firmware configuration.

To use it with the dashboard:

1. Connect the device to a computer using USB-C.
2. Install the FlockYou dashboard requirements from the public GitHub project.
3. Launch the dashboard software from the api folder.
4. Open the local dashboard in your browser.
5. Select the serial port for the connected device.
6. Detections should appear live in the dashboard when the device observes matching WiFi signatures.

The public FlockYou repository includes dashboard tooling that can ingest detection events over USB serial and display detections in a local web interface.

Project links:

• Colonel Panic Tech: https://colonelpanic.tech/
• FlockYou GitHub Repository: https://github.com/colonelpanichacks/flock-you

Where supported, the dashboard may allow advanced workflows such as live detection review, GPS-assisted wardriving, event logging, and exporting detection data. These features may require additional setup, a computer or phone browser, location permissions, or a separate GPS source depending on the dashboard configuration.

This listing is for the preloaded detector hardware. Dashboard/app use may require additional software setup by the user.

Important Notes

Detection is based on passive observation of nearby WiFi behavior and known public research signatures. Results may vary depending on distance, signal strength, camera configuration, firmware changes, surrounding WiFi noise, and environmental conditions.

This device is intended for security research, privacy education, and lawful surveillance-awareness use only. Always follow applicable local laws regarding wireless monitoring and public-space research.

This device does not disable, jam, bypass, interfere with, or connect to Flock Safety cameras or any other networked device. It is a passive awareness tool only.

What's Included

• 1x M5Stack Atom Lite ESP32 device
• FlockYou-style detection firmware preinstalled (rainbow boot → green idle → red on detection)
• Basic usage notes

USB-C power cable may not be included unless selected or stated in the listing.

Firmware Updates & Troubleshooting

Before requesting support or a return, please update your device to the latest firmware and review the troubleshooting guide.

Flock You Setup, Firmware Updates, Dashboard, and Troubleshooting

Many common issues are resolved by updating to the latest firmware and verifying device operation through the web dashboard. The guide includes firmware downloads, setup instructions, dashboard access, feature documentation, and solutions for the most common issues.
