Biscuit Expansion Node XIAO ESP32-C5 | Unsoldered Headers | Firmware Preinstalled
$54.99
Skip to product information
Biscuit Expansion Node XIAO ESP32-C5 | Unsoldered Headers | Firmware Preinstalled
$54.99
Before You Order
- Required: A Biscuit Pro or Ultra running compatible firmware as the node manager. The manager device is sold separately.
- Included: One XIAO ESP32-C5 with dedicated Biscuit Node firmware installed and external antenna.
- Power: Requires a USB-C cable and USB power source, neither included.
- Compatibility: Biscuit DIY and Crumb cannot manage this node. The node does not connect directly to the phone app.
Shipping options and delivery estimates depend on your items and destination. Shipping information · Returns · Ask a question
Add a Wireless Scanning Satellite

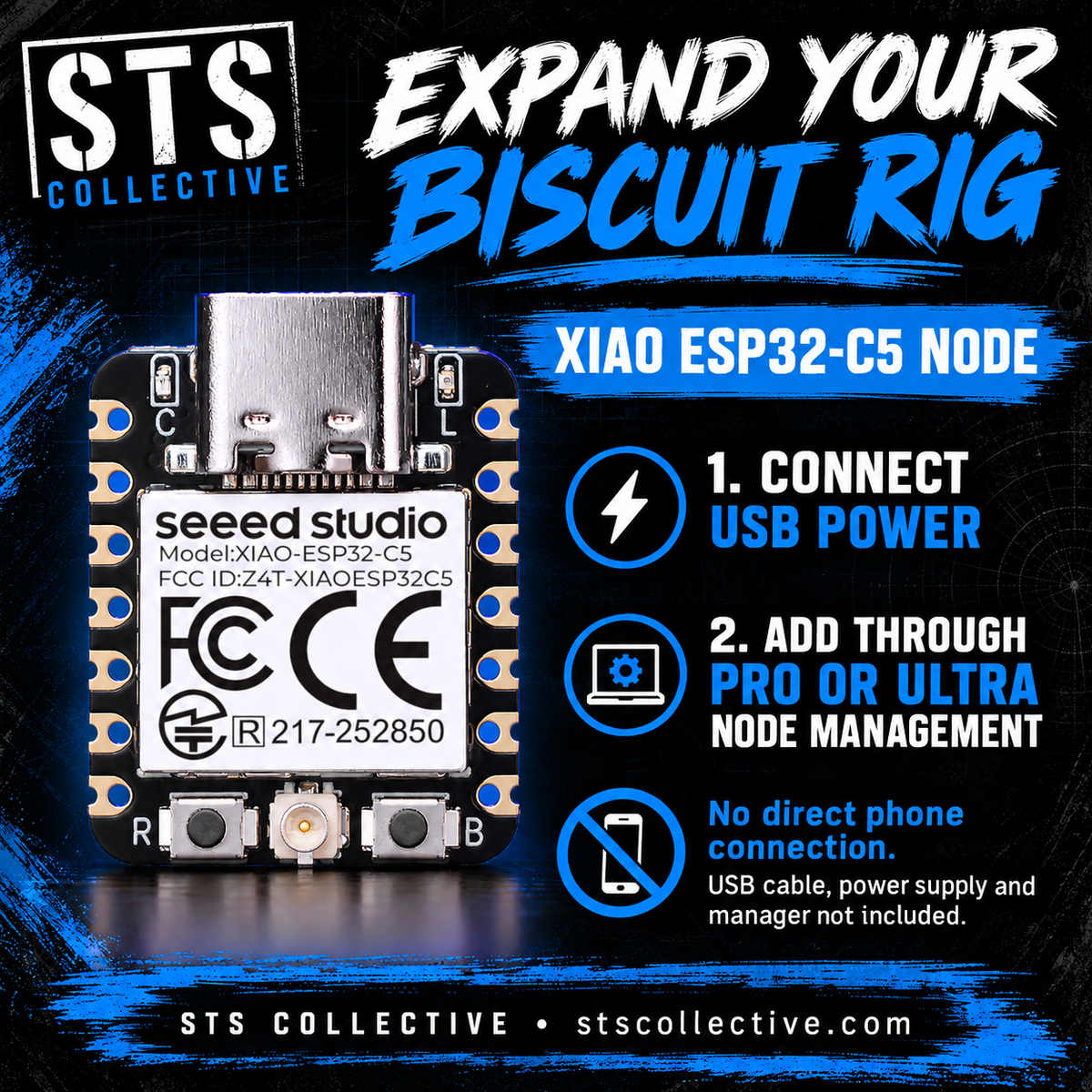

Pair the node through your primary device’s Node Management settings. A dedicated node scans assigned Wi-Fi channels or Bluetooth LE devices, one role at a time, and sends observations to its manager.
Hardware and Package

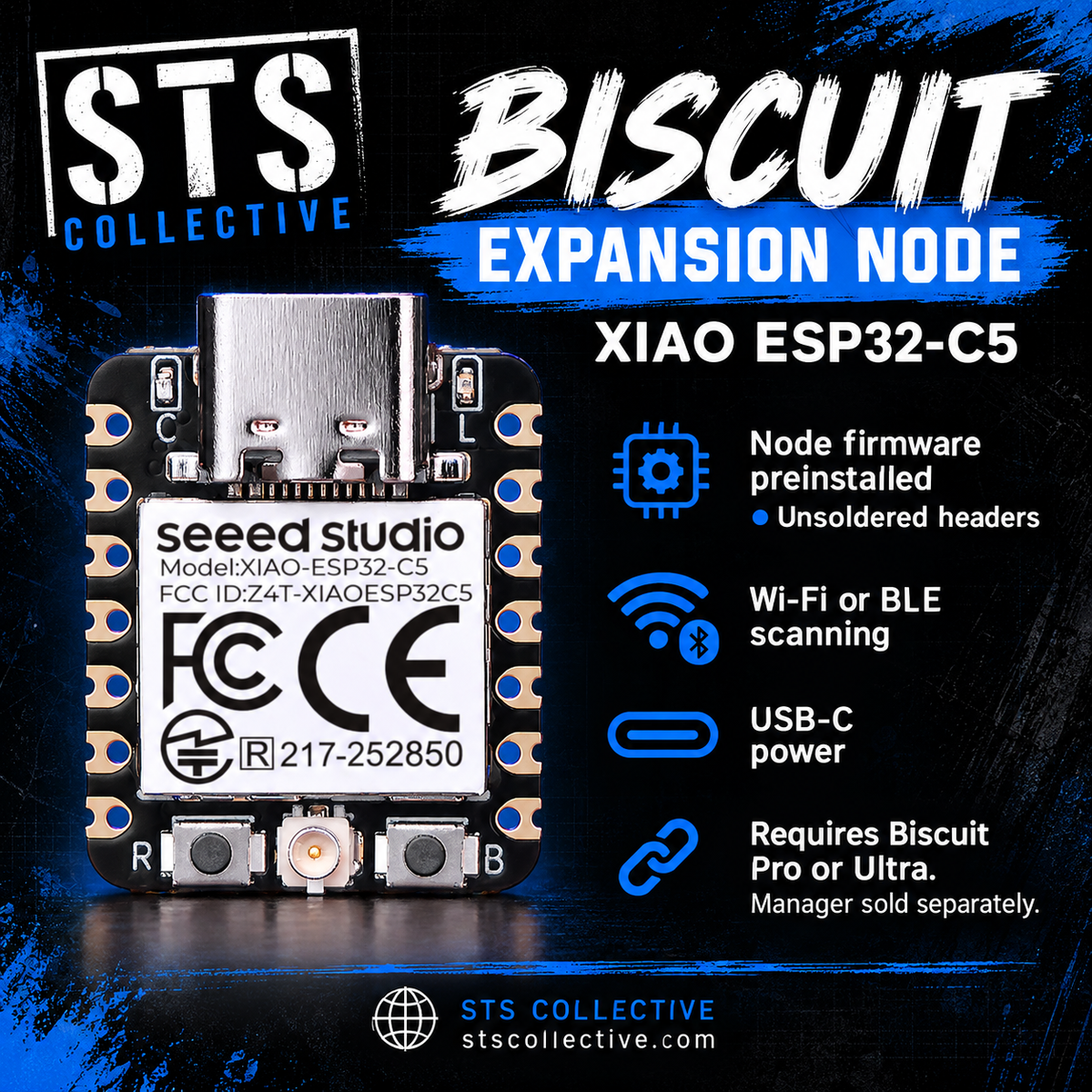

One Seeed Studio XIAO ESP32-C5 board with unsoldered pin headers and its external antenna. USB-C powered. No soldering is required for USB-powered operation; using GPIO accessories or a wired battery may require soldering.
- 2.4 GHz and 5 GHz Wi-Fi 6; Bluetooth LE
- 8 MB flash and 8 MB PSRAM
- Compact exposed development board; no enclosure, display or built-in microSD slot
- Battery, USB-C cable and USB power supply are not included
Operating Limits
Keep the node with its manager during wardriving: observations use the manager phone’s location. No onboard GPS, battery telemetry or local capture storage is provided. Firmware LED behavior varies by board; multicolor status indications are not promised.
Support
Compatibility questions: sales@stscollective.com. Setup support: support@stscollective.com.
STS Collective is an independent reseller and is not affiliated with or endorsed by Biscuit Shop. For authorized wireless research and education.
